Overview

nose2music was my submission to the BitRate - Machine Learning & Music Series hackathon, back in August 2020. The premise? Your webcam tracks your nose in real time, and as you move your head, it plays music. The canvas is divided into seven vertical bars, each mapped to a note, and whenever your nose passes a bar across the screen, it plays the note from that bar.

Now, I could wax poetic about how it was for increasing accessibility for a specific minority group, but it really wasn't anything like that. It was just one of my first real browser-based creative coding projects, built entirely in client-side JavaScript with no backend. My main goal at the time was to create something cool for the hackathon, and learn a lot within the given time crunch, which I did end up doing.

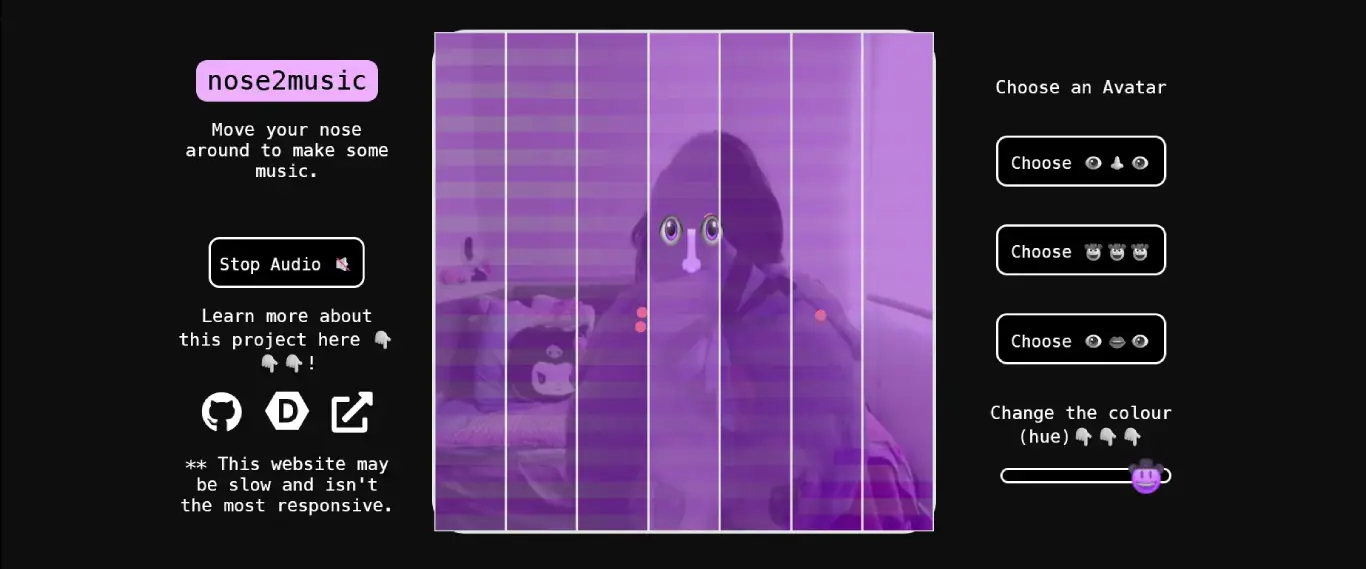

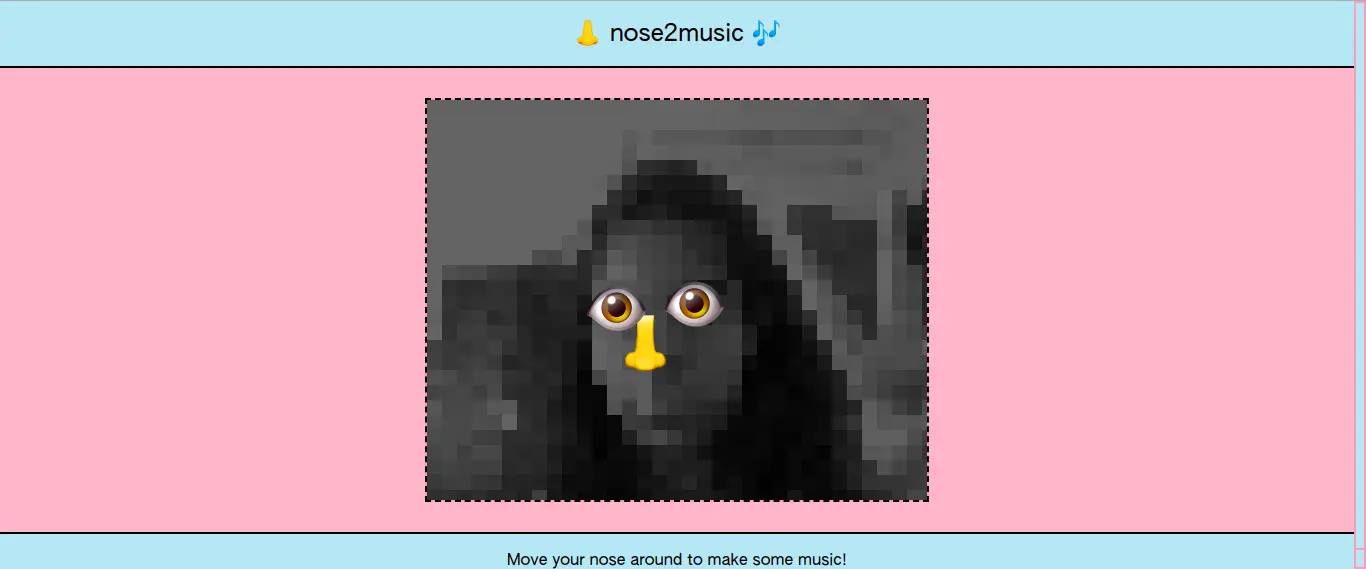

nose2music's original look	nose2music newer look

Inspiration

I'd been watching a lot of Daniel Shiffman's Coding Train videos around this time. His enthusiasm for creative coding with p5.js was infectious. The hackathon ran workshops covering ml5.js, and I saw projects using p5-audio and Tone.js with midi, which gave me an early look at how machine learning could look in the browser. It didn't have to be serious or tedious to be art.

I ended up choosing the nose as the main part of the tracker as it is a central part of the face. I guess I could have also used something like the distance between the eyes, which would be closer to how eye and face tracking takes place in current XR systems. The nose specifically felt like a funnier tracking target than a full face bounding box.

How It Works

The stack is entirely client-side:

Library	Version (2026)	Role
p5.js	1.7.0	Canvas rendering, webcam capture, draw loop
ml5.js	0.12.2	PoseNet model, detects body keypoints from video
Tone.js	14.8.49	Web Audio synthesis, plays notes via a `PolySynth`

The data flow is straightforward:

⚠️ Excalidraw SVGs not found: images/garden/nose2music/excalidraw-light.svg / images/garden/nose2music/excalidraw-dark.svg

The Bar System

The canvas is split into 7 equal vertical bars, each assigned a note from a fixed scale:

let notes = ["Db4", "F4", "A4", "C5", "Eb4", "D3", "F5"];

Each bar is an instance of a Bar class that tracks its own position, width, and visual alpha:

class Bar {
  constructor(x, w) {
    this.x = x;
    this.y = 0;
    this.w = w;
    this.h = height;
    this.a = 25; // alpha, visible when active
    this.note = 0; // 0 = not playing
  }

  play(n) {
    this.a = 15;
    this.note = n;
  }
  notPlay() {
    this.a = 0;
    this.note = 0;
  }
}

Every frame, drawKeypoints() checks which bar the nose's x-coordinate falls into, calls play() on that bar, and notPlay() on the rest. Then triggerSynth() fires on a Tone.js transport loop ("4n" - every quarter note), collects the active notes, and sends them to a PolySynth:

function triggerSynth(time) {
  for (let i = 0; i < numBars; i++) {
    playNotes[i] = bars[i].note != 0 ? notes[i] : 0;
  }
  synth.triggerAttackRelease(playNotes, "8n");
}

The Visual Layer

The canvas has its base as the raw video feed coming in from the webcam, and then a few additional layers get composited on top of it:

lowResDraw(): samples the webcam pixels at a 15px grid resolution (res = 15) and redraws them as coloured rectangles, giving it a pixelated/mosaic look
mirrorVideo(): flips the canvas horizontally via a WEBGL scale(-1, 1, 0) so it feels like a mirror
drawPoses(): overlays a chosen "avatar" image on top of the nose keypoint (and optionally the eyes)
hueRotate.js: a slider in the UI applies a CSS hue-rotate() filter to the entire <body>, shifting all the colours at once

The avatar images (face1.png, cowboy.png, face2.png) get rendered centered on the nose keypoint position 🤠

Development Timeline

August–September 2020; the Hackathon sprint

The whole thing was built over about two days. From August 30th to September 9th I followed the typical hackathon pattern, to get something barely working, iterate fast, polish last (if time permits).

August 30th: stripped out some earlier server-side experiments, first functional version
August 31st: hand tracker added, Tone.js integrated, deployed on Netlify
September 1st: mirrored video, filters, lost sound? (a commit that says it all), low-res video setup
September 9th: fixed formatting and bugs, added some tint

The lost sound? commit on September 1st is where the audio broke mid-sprint and I couldn't fix it before submission. sketchOld.js is roughly what was submitted. Tone.js was initialised at the top level, which meant the AudioContext started immediately without any user gesture, and browsers began blocking this.

March 2021: Visual overhaul

Six months later, I added some significant updates to make things look good on my résumé:

Avatar selector added (chooseImg1/2/3, three button choices in the UI)
Improved responsiveness (the mobile layout with flex-direction: column-reverse came in here)
Hue rotation slider added
Keypoint drawing refactored. The old sketchOld.js had seven separate if blocks checking each bar one by one. The new version loops over bars[] cleanly

December 31, 2023: The NYE audio fix attempt

Three years later, on New Year's Eve, I tried to fix the audio for real. I think I just looked at it because I was bored lol.

The root cause was clear because I had gotten much better at debugging by then. Browsers require AudioContext to be created (or resumed) inside a user gesture handler. The old code called new Tone.PolySynth(...).toMaster() at the module level, which led to the context being blocked instantly.

The fix was moving everything into a button click handler:

// resumeAudioContext.js
let audioContext;
function initAudioContext() {
  if (!audioContext) {
    audioContext = new AudioContext();
  } else {
    audioContext.resume();
  }
}

And in sketch.js, the Play/Stop button now does the full Tone.js startup sequence:

playAudioBtn.mousePressed(async () => {
  if (!audioStarted) {
    await Tone.start();
    await Tone.loaded();
    synth = new Tone.PolySynth(Tone.Synth, {
      maxPolyphony: numBars,
    }).toDestination();
    Tone.Transport.scheduleRepeat(triggerSynth, "4n");
    Tone.Transport.start();
    audioStarted = true;
    playAudioBtn.html("Stop Audio 🔇");
  } else {
    Tone.Transport.stop();
    audioStarted = false;
    playAudioBtn.html("Play Audio 🔊");
  }
});

January 2026: The most recent update, `refresh-2026` branch

The most recent update:

Updated all three libraries to current versions (p5.js 1.7.0, ml5.js 0.12.2, Tone.js 14.8.49)
Improved the audio context handling
Tidied up the CSS.
Switched from .toMaster() (deprecated in Tone.js v14) to .toDestination(). This is the version currently deployed.

Try It Out

Allow webcam access when prompted. Click Play Audio 🔊 first, as the audio won't start until you do. Works best on desktop in Chrome or Firefox.

Built With

p5.js
ml5.js
Tone.js
HTML + CSS
